DXL ONE

One implant.
Done right.

Made in Germany. Precise by design. Built for practice.

Explore DXL One Talk to us

Grade 4 Titanium·SLA Surface·ISO 13485

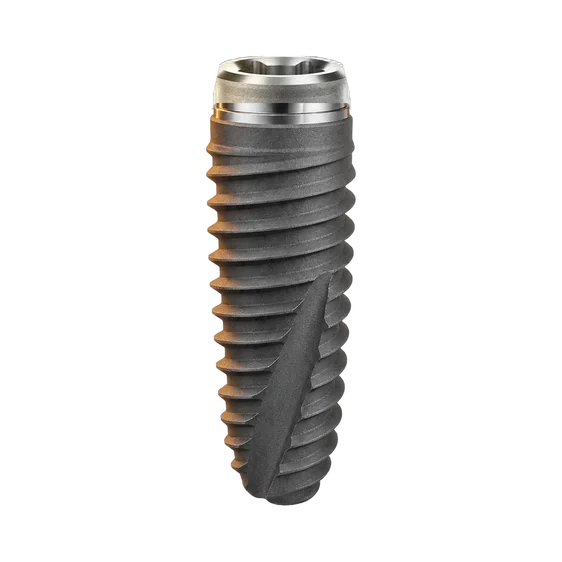

Titanium implant fixture with conical connection and microthreads

Designedfor everyday implantology

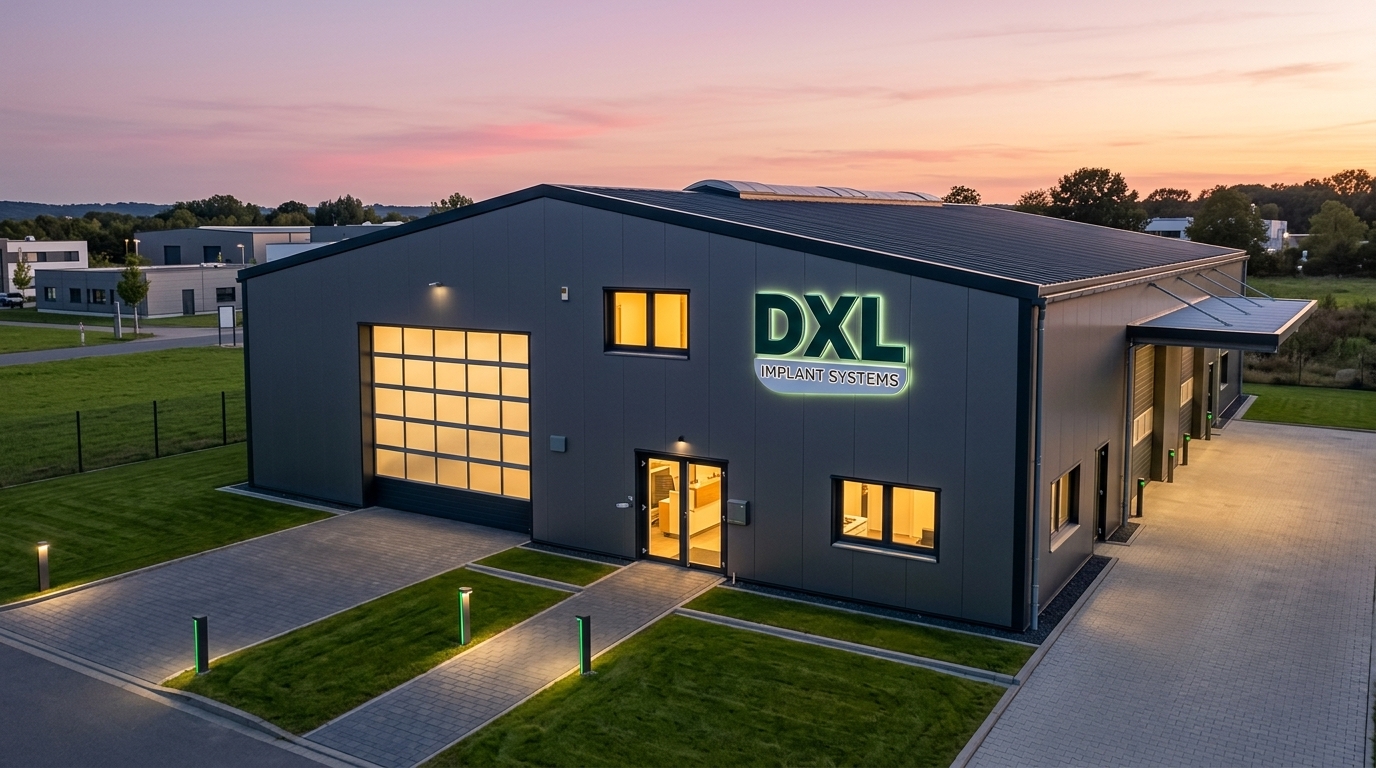

Made in GermanyHerzogenrath

Pricedwithout the premium markup

02 / 04

ENGINEERED FOR STABILITY

Primary stability.
By design.

Thread geometry for stability. A precise connection. An SLA surface for integration.

Conical connection

A precise implant-abutment connection with internal hex for a stable, streamlined workflow.

Cylindro-conical body

The body follows the drilling geometry and supports a precise fit in the implant bed.

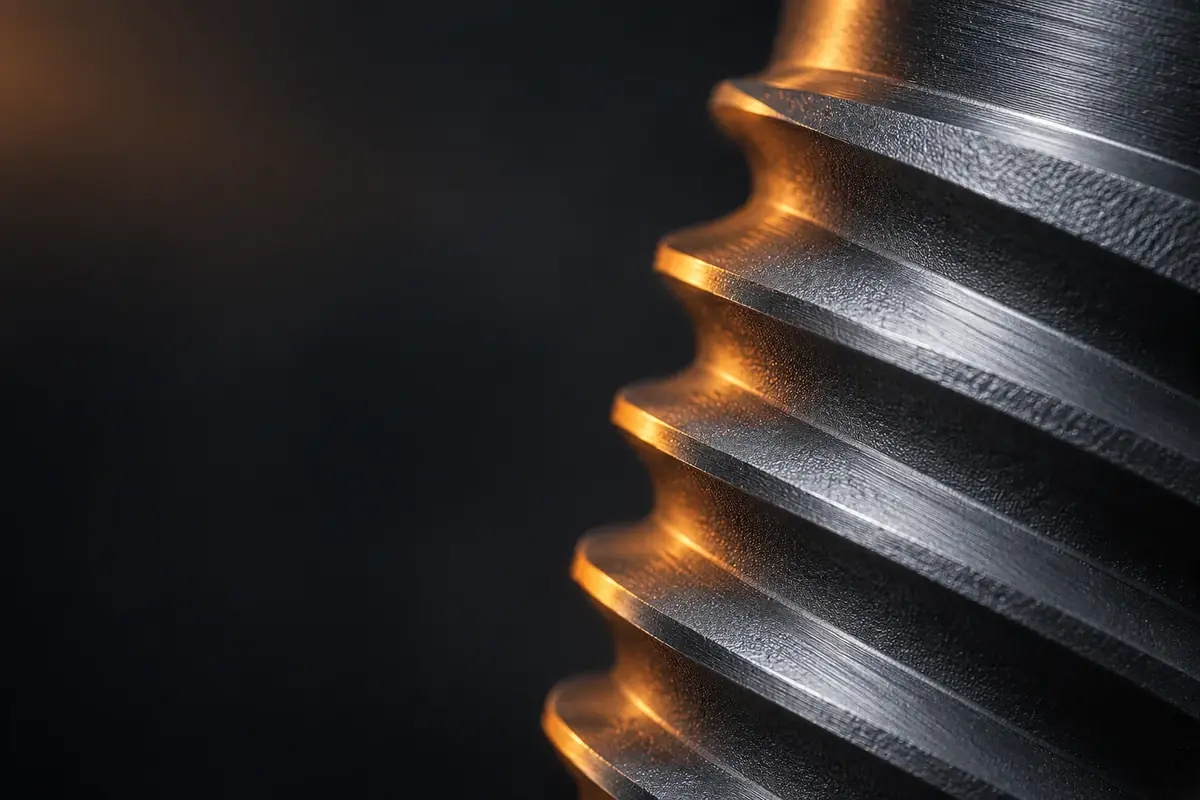

SLA microstructure

Defined surface roughness increases the contact area between bone and implant.

Atraumatic apex design

The rounded apical geometry is designed for controlled, tissue-conscious placement.

Portfolio

One system.
Clear workflow.

Implants, prosthetics and instruments follow one consistent logic. Less workflow complexity. More focus on treatment.

SYSTEMS

DXL ONE Core01 / 03

Routine versatility.

Designed for everyday implantology and esthetic zones.

D1–D3 BoneØ 3.3–5.0 mmSLA SurfaceUniversal Hex

Explore in CatalogueUniversal 2.24 / 2.1 mm Hex Connection

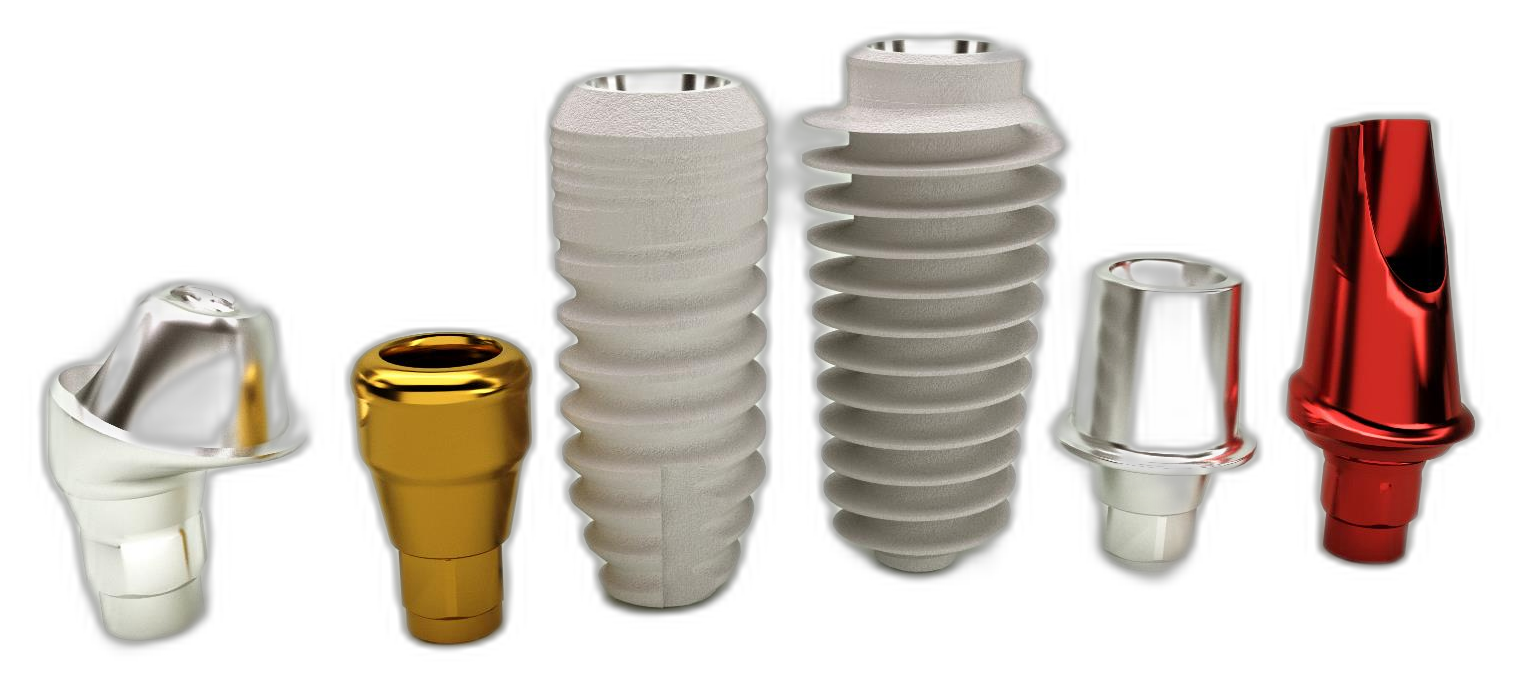

DXL ONE

Two geometries.
One system.

Choose the geometry for the clinical situation. Keep the same prosthetic connection.

DXL ONE CORE

D1–D3 Bone

Everyday versatility.

Routine cases · Esthetic zone · D1–D3 bone

Cylindro-conical · Microthreads
5 Diameters · Ø 3.3–5.0 mm
Designed for predictable integration

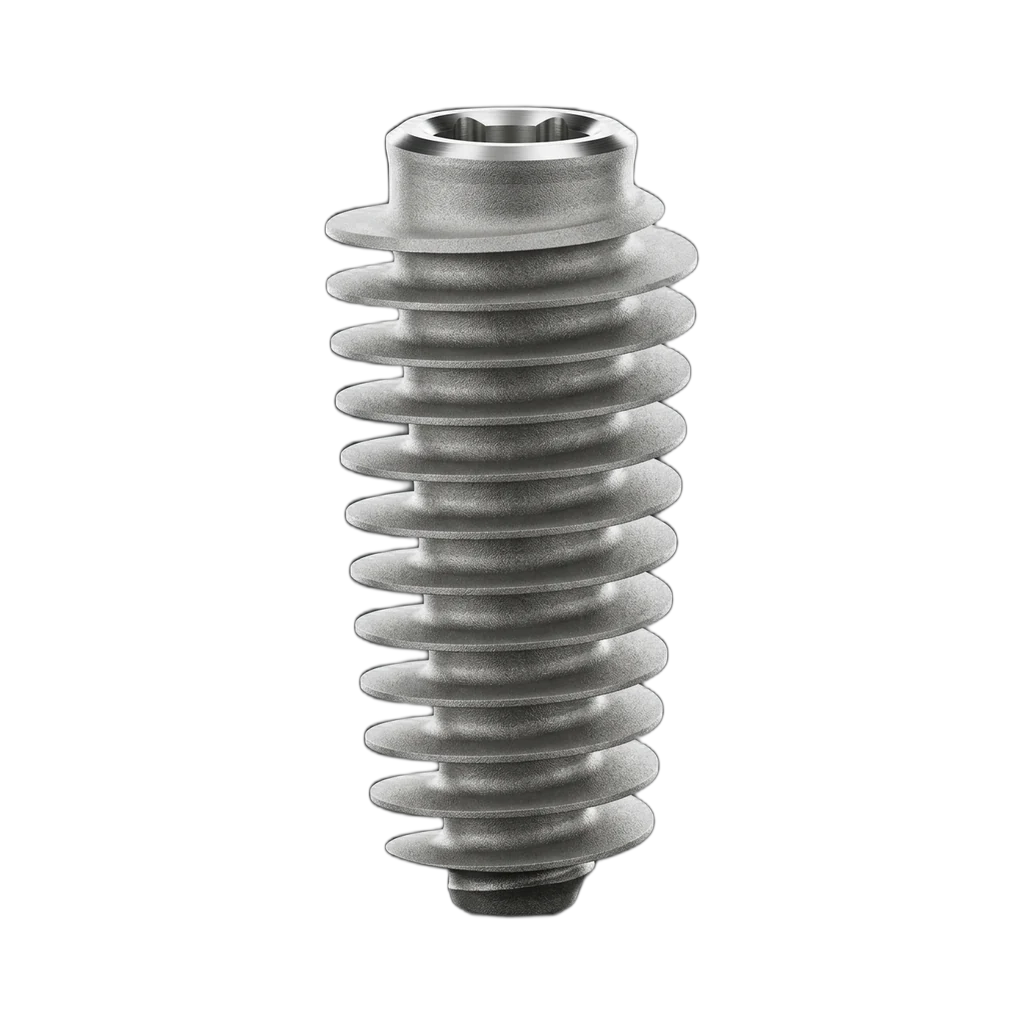

DXL ONE ACTIVE

D3–D4 Soft Bone

Built for stability.

Extraction sockets · Soft bone · D3–D4

Root-shaped · Deep cutting threads
4 Diameters · Ø 3.5–5.5 mm
Designed for high primary stability

Unified Restorative Ecosystem

Different geometry. Same connection.

One connection. One surgical ecosystem. Two geometries. Both fixtures share the exact same internal hex interface (2.24 / 2.1 mm) — choose the fixture you need, keep the workflow you know.

Specification	DXL ONE CORE	DXL ONE ACTIVE
Body Geometry	Cylindro-conical	Root-shaped
Thread Design	Progressive microthreads	Deep cutting threads
Bone Response	Passive bone preservation	Active lateral condensation
Primary Clinical Focus	Routine cases · Esthetic zone (D1–D3)	Extraction sockets · Soft bone (D3–D4)
Available Diameters	Ø 3.3 · 3.8 · 4.1 · 4.5 · 5.0 mm	Ø 3.5 · 4.0 · 4.5 · 5.5 mm
Typical Insertion Range*	35 – 45 Ncm	45 – 65 Ncm
Prosthetic ConnectionUniversal	Internal Hex 2.24 / 2.1 mm	Internal Hex 2.24 / 2.1 mm (Identical)

*Typical insertion torque depends on bone density, bed preparation and clinical situation. Always follow the official DXL Instructions for Use (IFU).

Digital Product Portfolio · 2026 Edition

Complete System Portfolio.
0+ certified precision components online.

Open Full E-Catalogue

Explore our complete portfolio for surgery, prosthetics, multi-unit restorations, and CAD/CAM blanks on our dedicated interactive catalog page with instant SKU copy, platform filters, and direct inquiries.

FixturesØ 3.3 – 5.5 mm
