Internal 2.1 mm (Narrow) & 2.24 mm (Standard)
Sand-blasted acid-etched micropores
Titanium cradle in screw-top glass vial
One surgical cassette for all implant lines
DXL ONE
Two geometries.
One system.
Choose the geometry for the clinical situation. Keep the same prosthetic connection.
Everyday versatility.
Routine cases · Esthetic zone · D1–D3 bone
- Cylindro-conical · Microthreads
- 5 Diameters · Ø 3.3–5.0 mm
- Designed for predictable integration
Built for stability.
Extraction sockets · Soft bone · D3–D4
- Root-shaped · Deep cutting threads
- 4 Diameters · Ø 3.5–5.5 mm
- Designed for high primary stability
Different geometry. Same connection.
One connection. One surgical ecosystem. Two geometries. Both fixtures share the exact same internal hex interface (2.24 / 2.1 mm) — choose the fixture you need, keep the workflow you know.
| Specification | DXL ONE CORE | DXL ONE ACTIVE |
|---|---|---|
| Body Geometry | Cylindro-conical | Root-shaped |
| Thread Design | Progressive microthreads | Deep cutting threads |
| Bone Response | Passive bone preservation | Active lateral condensation |
| Primary Clinical Focus | Routine cases · Esthetic zone (D1–D3) | Extraction sockets · Soft bone (D3–D4) |
| Available Diameters | Ø 3.3 · 3.8 · 4.1 · 4.5 · 5.0 mm | Ø 3.5 · 4.0 · 4.5 · 5.5 mm |
| Typical Insertion Range* | 35 – 45 Ncm | 45 – 65 Ncm |
| Prosthetic ConnectionUniversal | Internal Hex 2.24 / 2.1 mm | Internal Hex 2.24 / 2.1 mm (Identical) |
*Typical insertion torque depends on bone density, bed preparation and clinical situation. Always follow the official DXL Instructions for Use (IFU).

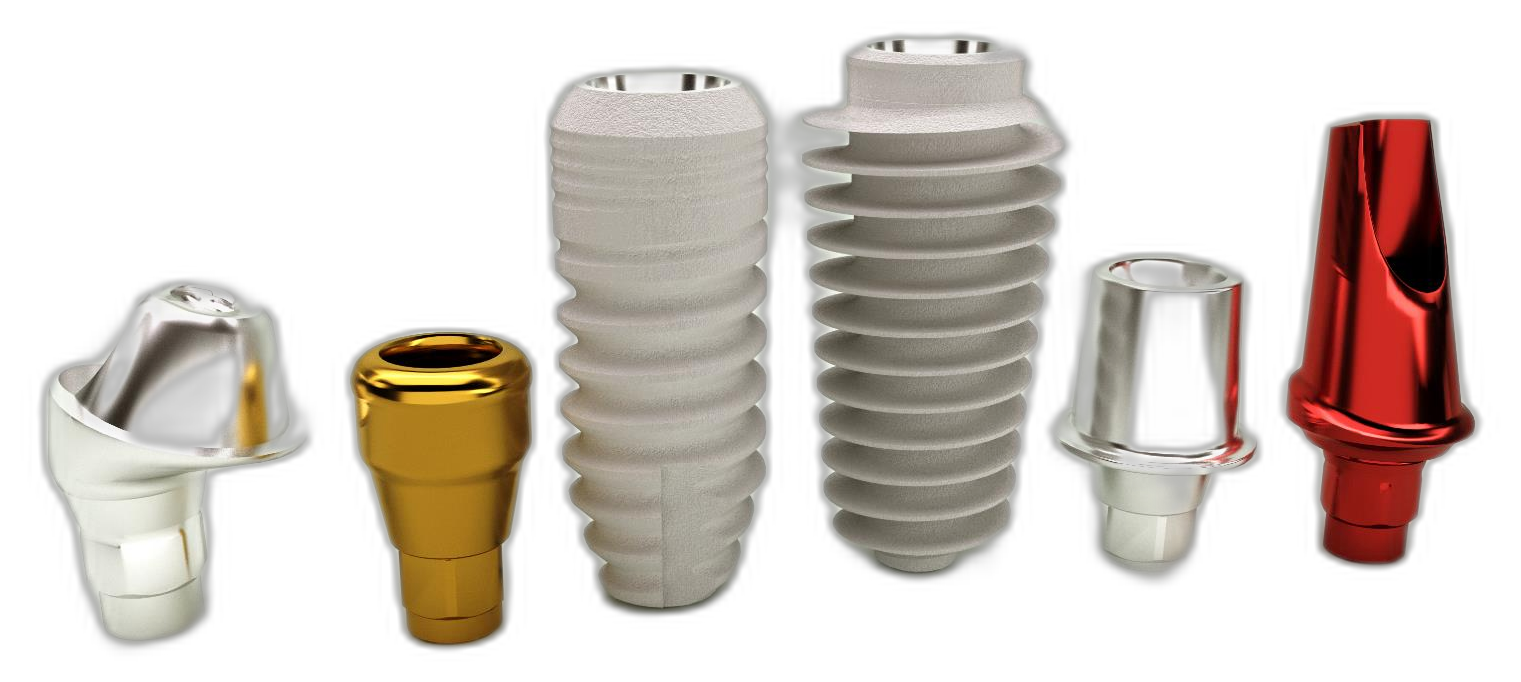

DXL Premium Hybrid Implant
Focus: Routine & standard cases — Cylindro-conical fixture for biological predictability
The primary choice for routine clinical cases and standard protocols. The cylindro-conical body with progressive microthreads provides gentle bone condensation, controlled insertion, and predictable long-term osseointegration.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 3.3 mm | 8 mm | Narrow (Pink) | 35–45 NcmNarrow Pink · Incisors & Canines | Inquire | |
| 3.3 mm | 10 mm | Narrow (Pink) | 35–45 NcmNarrow Pink · Incisors & Canines | Inquire | |
| 3.3 mm | 11.5 mm | Narrow (Pink) | 35–45 NcmNarrow Pink · Incisors & Canines | Inquire | |
| 3.8 mm | 8 mm | Standard (Yellow) | 35–45 NcmStandard Yellow · Routine Fixture | Inquire | |
| 3.8 mm | 10 mm | Standard (Yellow) | 35–45 NcmStandard Yellow · Routine Fixture | Inquire | |
| 3.8 mm | 11.5 mm | Standard (Yellow) | 35–45 NcmStandard Yellow · Routine Fixture | Inquire |

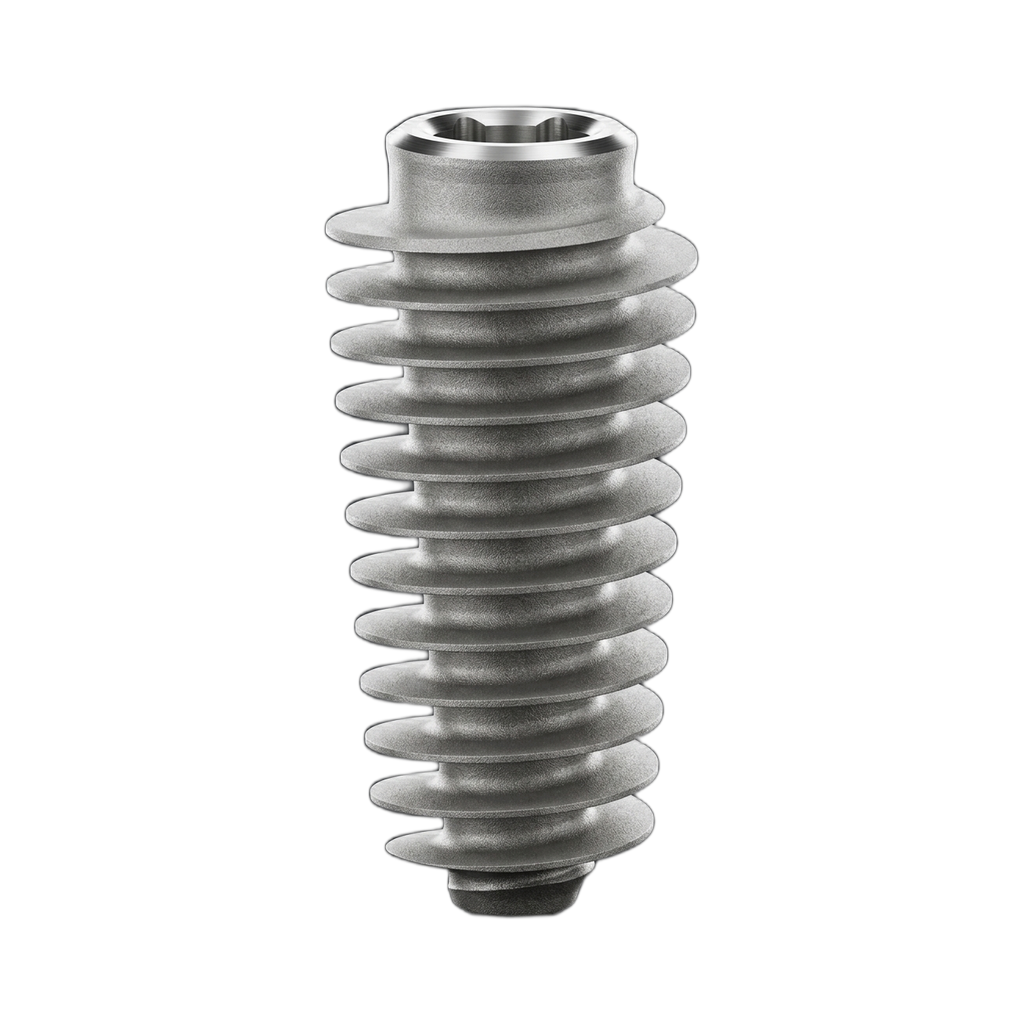

DXL Smart Implant
Focus: Immediate loading & soft bone — Deep progressive threads for immediate fixation
Engineered for uncompromising anchoring in immediate extraction sockets, soft D3–D4 bone, and cases demanding superior mechanical hold. Active self-tapping deep threads compact bone laterally for exceptional primary stability.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 3.5 mm | 8 mm | Narrow (Pink) | 40–50 NcmNarrow Yellow · Soft bone & immediate placement | Inquire | |
| 3.5 mm | 10 mm | Narrow (Pink) | 40–50 NcmNarrow Yellow · Soft bone & immediate placement | Inquire | |
| 3.5 mm | 12.5 mm | Narrow (Pink) | 40–50 NcmNarrow Yellow · Soft bone & immediate placement | Inquire | |
| 4.0 mm | 8 mm | Standard (Yellow) | 45–60 NcmStandard Red · Deep condensing thread | Inquire | |
| 4.0 mm | 10 mm | Standard (Yellow) | 45–60 NcmStandard Red · Deep condensing thread | Inquire | |
| 4.0 mm | 12.5 mm | Standard (Yellow) | 45–60 NcmStandard Red · Deep condensing thread | Inquire |

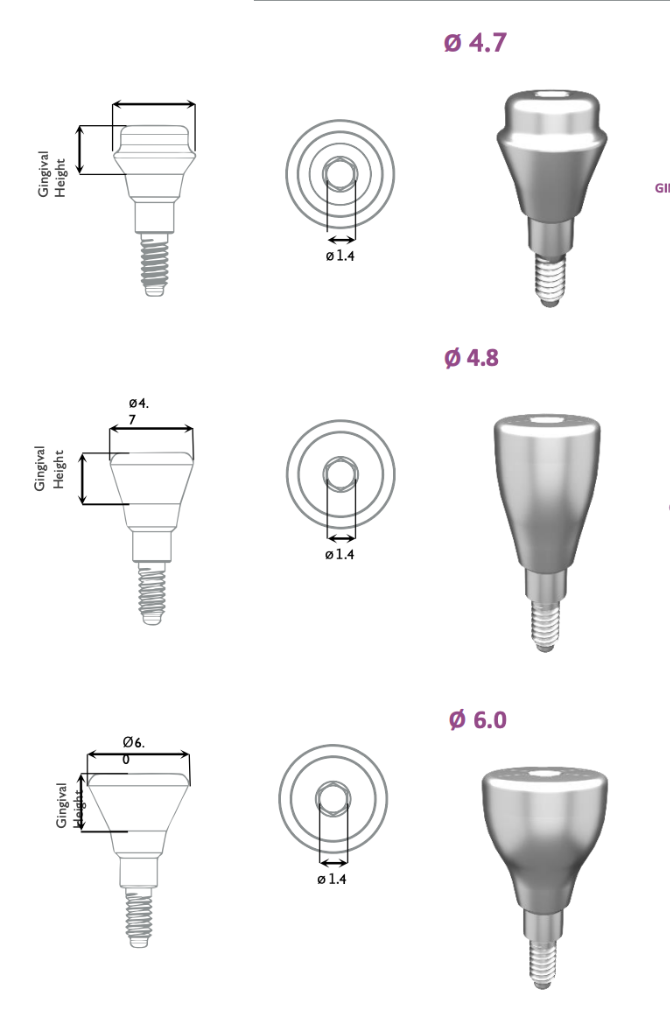

DXL Healing Caps
Soft tissue sculpting & emergence profile conditioning
Precision-milled medical titanium Grade 5 healing abutments engineered for anatomical soft tissue profiling and tight mucosal seal. Available in cylindrical, conical, and wide emergence profiles.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 4.1 mm | GH 3.5 mm | Narrow (Pink) | 15 Ncm | Inquire | |
| 4.1 mm | GH 4.5 mm | Narrow (Pink) | 15 Ncm | Inquire | |
| 4.7 mm | GH 5.5 mm | Narrow (Pink) | 15 Ncm | Inquire | |
| 4.7 mm | GH 3.5 mm | Standard (Yellow) | 15 NcmConical emergence | Inquire | |
| 4.7 mm | GH 4.5 mm | Standard (Yellow) | 15 NcmConical emergence | Inquire | |
| 4.7 mm | GH 5.5 mm | Standard (Yellow) | 15 NcmConical emergence | Inquire |

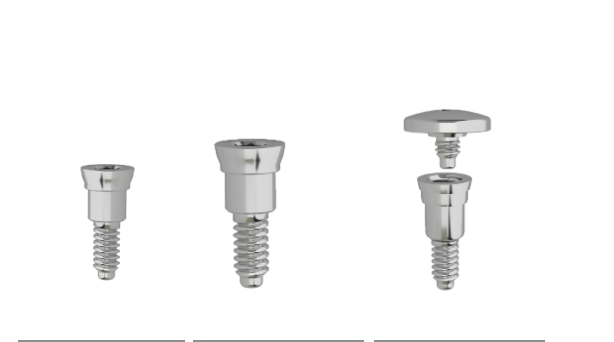

DXL Cover Screws
Secure internal hex sealing for submerged healing protocols
Low-profile Grade 5 titanium cover screws engineered to hermetically seal the internal connection during submerged osseointegration. Prevents soft tissue ingrowth and bacterial penetration.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 2.6 mm | GH 0 mm | Narrow (Pink) | 10–15 NcmNarrow Flush | Inquire | |
| 2.6 mm | GH 2 mm | Narrow (Pink) | 10–15 NcmNarrow Extended | Inquire | |
| 2.6 mm | GH 0 mm | Narrow (Pink) | 10–15 NcmNarrow Sterile Pre-packed | Inquire | |
| 3.1 mm | GH 0 mm | Standard (Yellow) | 10–15 NcmStandard Flush | Inquire | |
| 3.1 mm | GH 2 mm | Standard (Yellow) | 10–15 NcmStandard Extended | Inquire | |
| 6.0 mm | GH 1 mm | Standard (Yellow) | 10–15 NcmStandard Wide Collar | Inquire |

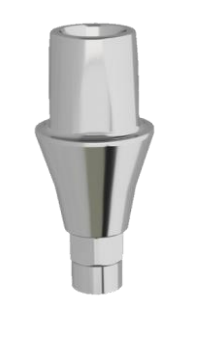

DXL Straight Abutments
Fixed cemented & screw-retained single crowns and multi-unit bridges
Precision-crafted titanium abutments with microscopic anti-rotational internal hex tolerance for axial restorations. Available in short (K 4mm), long (K 7mm), slim, and aesthetic anatomical versions.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 4.0 mm | GH 1 mm | Narrow (Pink) | 30 NcmNarrow Short | Inquire | |
| 4.0 mm | GH 2 mm | Narrow (Pink) | 30 NcmNarrow Short | Inquire | |
| 4.0 mm | GH 3 mm | Narrow (Pink) | 30 NcmNarrow Short | Inquire | |
| 3.7 mm | GH 0 mm | Standard (Yellow) | 30 NcmStandard Slim 5mm | Inquire | |
| 3.7 mm | GH 0 mm | Standard (Yellow) | 30 NcmStandard Slim 7mm | Inquire | |
| 3.7 mm | GH 0 mm | Standard (Yellow) | 30 NcmStandard Slim 9mm | Inquire |

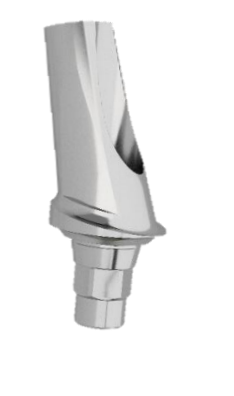

DXL Aesthetic Angled Abutments (15° / 25°)
Divergence compensation and anatomical aesthetic contouring
Pre-angled medical titanium abutments (15° and 25°) engineered to compensate for implant insertion divergence up to 50° between fixtures. Optimizes prosthetic screw access and aesthetic tooth axis.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 4.0 mm | GH 0,5 mm | Narrow (Pink) | 15°30 NcmNarrow Angled 15° | Inquire | |
| 4.0 mm | GH 1 mm | Narrow (Pink) | 15°30 NcmNarrow Angled 15° | Inquire | |
| 4.0 mm | GH 2 mm | Narrow (Pink) | 15°30 NcmNarrow Angled 15° | Inquire | |
| 4.0 mm | GH 3 mm | Narrow (Pink) | 15°30 NcmNarrow Angled 15° | Inquire | |
| 4.0 mm | GH 0,5 mm | Narrow (Pink) | 25°30 NcmNarrow Angled 25° | Inquire | |
| 4.0 mm | GH 1 mm | Narrow (Pink) | 25°30 NcmNarrow Angled 25° | Inquire |

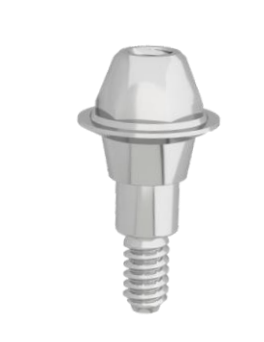

DXL Multi-Abutment System (Multi-Units)
Screw-retained full-arch bridges and bar prosthetics on multiple implants
The premium Multi-Unit prosthetic system for passive-fit, fully screw-retained full-arch bridges and bar overdentures. Elevates the prosthetic seating plane to soft tissue level, compensating up to 70° total convergence.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 4.8 mm | GH 0 | Narrow (Pink) | 0°30 NcmMulti Straight Narrow | Inquire | |
| 4.8 mm | GH 1 | Narrow (Pink) | 0°30 NcmMulti Straight Narrow | Inquire | |
| 4.8 mm | GH 2 | Narrow (Pink) | 0°30 NcmMulti Straight Narrow | Inquire | |
| 4.8 mm | GH 0 | Standard (Yellow) | 0°30 NcmMulti Straight Standard | Inquire | |
| 4.8 mm | GH 1 | Standard (Yellow) | 0°30 NcmMulti Straight Standard | Inquire | |
| 4.8 mm | GH 2 | Standard (Yellow) | 0°30 NcmMulti Straight Standard | Inquire |

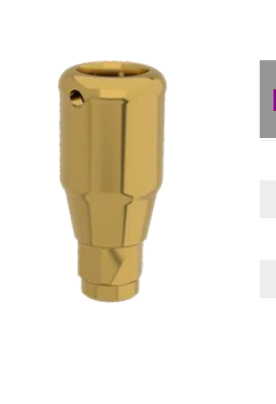

DXL Ball & Locator Abutments (Overdenture)
Removable partial and complete overdentures retention
Precision ball attachments and self-aligning Locator retention anchors engineered for superior overdenture stability in edentulous mandibles and maxillae. Features replaceable nylon retention inserts with defined retention forces.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 5.0 mm | GH 1 mm | Narrow (Pink) | 30 NcmBall Abutment Narrow | Inquire | |
| 5.0 mm | GH 2 mm | Narrow (Pink) | 30 NcmBall Abutment Narrow | Inquire | |
| 5.0 mm | GH 3 mm | Narrow (Pink) | 30 NcmBall Abutment Narrow | Inquire | |
| 3.7 mm | GH 1 mm | Standard (Yellow) | 30 NcmBall Abutment Standard | Inquire | |
| 3.7 mm | GH 2 mm | Standard (Yellow) | 30 NcmBall Abutment Standard | Inquire | |
| 3.7 mm | GH 3 mm | Standard (Yellow) | 30 NcmBall Abutment Standard | Inquire |

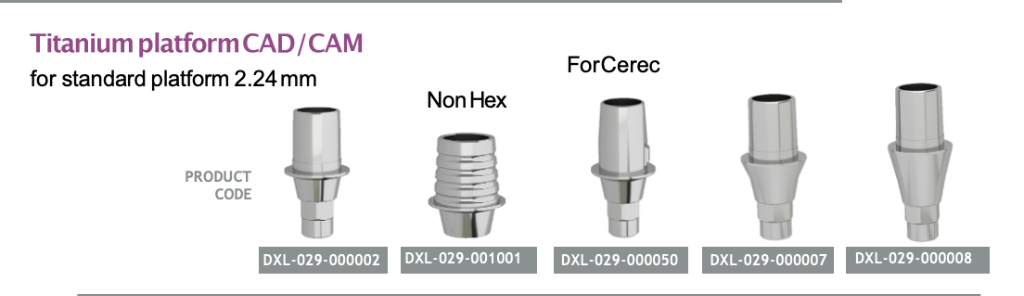

DXL CAD/CAM Titanium Bases & Premill Blanks
Digital workflow Ti-Bases and custom titanium milling blanks
High-precision titanium bonding bases engineered for CEREC® and open dental CAD/CAM systems (Exocad, 3Shape). Features optimized retention grooves and anti-rotation index for single crowns.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 4.6 mm | GH 0 mm | Standard (Yellow) | 30 NcmTiBase for CEREC® Non-Hex | Inquire | |
| 4.4 mm | GH 0.5 mm | Standard (Yellow) | 30 NcmTiBase Standard CAD/CAM | Inquire | |
| 4.5 mm | GH 1.0 mm | Standard (Yellow) | 30 NcmTiBase Standard High Chimney | Inquire | |
| 4.4 mm | GH 1.5 mm | Standard (Yellow) | 30 NcmTiBase Standard Medium GH | Inquire | |
| 4.6 mm | GH 2.5 mm | Standard (Yellow) | 30 NcmTiBase Standard High GH | Inquire | |
| 10 mm | Standard 2.24 mm Hex | Standard (Yellow) | Premill Titanium Blank Standard Hex | Inquire |

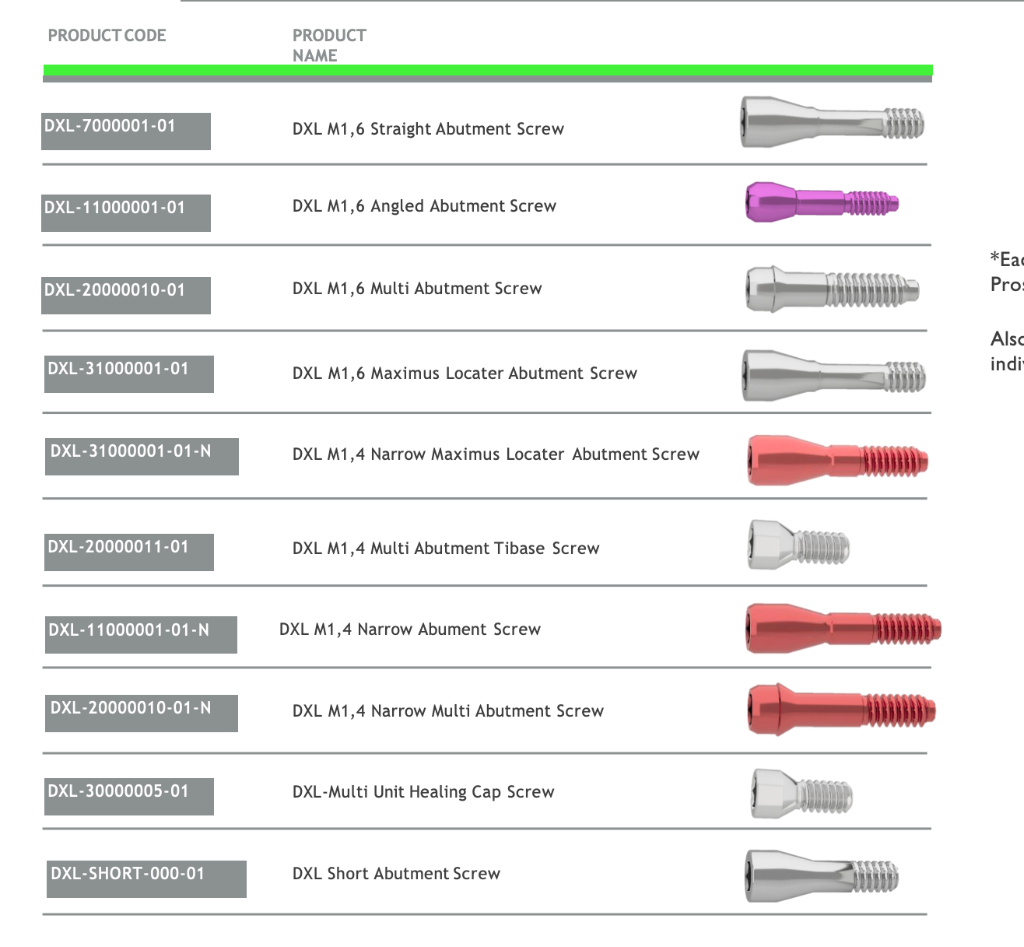

DXL Prosthetic Screws
High-tensile Grade 5 titanium prosthetic fixation screws
Precision-machined medical Grade 5 titanium screws for straight, angled, Multi-Unit, and Locator abutments. Each abutment package includes a fixation screw; replacement screws can also be ordered individually.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| — | — | Standard (Yellow) | 30 NcmDXL M1,6 Straight Abutment Screw | Inquire | |
| — | — | Standard (Yellow) | 30 NcmDXL M1,6 Angled Abutment Screw | Inquire | |
| — | — | Standard (Yellow) | 30 NcmDXL M1,6 Multi Abutment Screw | Inquire | |
| — | — | Standard (Yellow) | 30 NcmDXL M1,6 Maximus Locator Abutment Screw | Inquire | |
| — | — | Narrow (Pink) | 30 NcmDXL M1,4 Narrow Maximus Locator Screw | Inquire | |
| — | — | Standard (Yellow) | 15 NcmDXL M1,4 Multi Abutment TiBase Screw | Inquire |
DXL Impression Transfers, Scan Bodies & Lab Analogs
Open/closed tray impression posts, intraoral scan bodies, and stone model analogs
Complete precision impression and digital capture portfolio. Includes open-tray and closed-tray transfers with repositioning flats, high-contrast digital scan bodies, and long-life stainless steel lab analogs.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| 4.0 mm | L 10 mm | Standard (Yellow) | Standard Laboratory Implant Analog | Inquire | |
| 4.0 mm | L 15 mm | Narrow (Pink) | Narrow Laboratory Implant Analog | Inquire | |
| 4.8 mm | L 9 mm | Standard (Yellow) | Multi-Unit Analog Standard | Inquire | |
| 4.8 mm | L 11 mm | Standard (Yellow) | Multi-Unit Analog Long | Inquire | |
| 4.8 mm | 1 mm | Standard (Yellow) | Multi-Base Standard | Inquire | |
| 4.8 mm | 0 mm | Standard (Yellow) | Multi-Base CAD/CAM | Inquire |

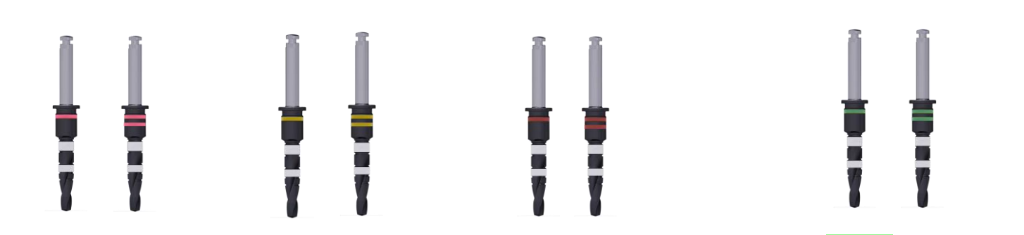

DXL Surgical Kits, Drills & Drivers
Full surgical cassette, precision depth drill stops, and tri-flute drills
German-engineered autoclavable surgical tray with an intuitive color-coded drilling layout. Features internal-irrigation surgical drills, tactile depth stoppers, calibrated torque ratchets, and machine drivers.
| Article No. (SKU) | Diameter | Length / GH | Platform | Torque / Details | Action |
|---|---|---|---|---|---|
| — | — | Universal | DXL All-in-One Surgical Kit (Master-Kassette komplett mit Ratschen & Instrumenten) | Inquire | |
| — | — | Universal | DXL Precision Stopper Drill Set (Tiefenstopp-Chirurgie-Set) | Inquire | |
| — | — | Universal | 10–45 NcmDXL Ratchet (Kalibrierte Drehmomentratsche mit Hebel) | Inquire | |
| — | 23 mm | Standard (Yellow) | Standard Contra-Angle Implant Driver Short | Inquire | |
| — | 29 mm | Standard (Yellow) | Standard Contra-Angle Implant Driver Medium | Inquire | |
| — | 40 mm | Standard (Yellow) | Standard Contra-Angle Implant Driver Long | Inquire |
